Final project - Getting started!

Phase 1. How can we make a sound?

Since Magdalena and I have no experience and background about sound installation, it took a little bit long time only to figure it out what program should we use to make sound and how to connect it with Arduino.

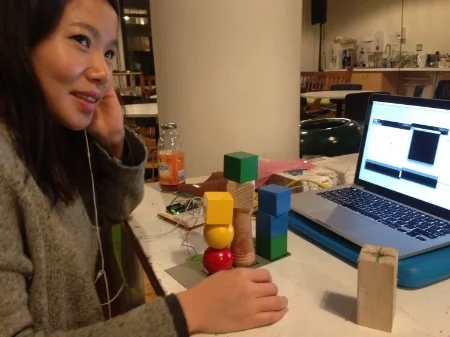

(1) SOUND WITH ARDUINO AND PROCESSING

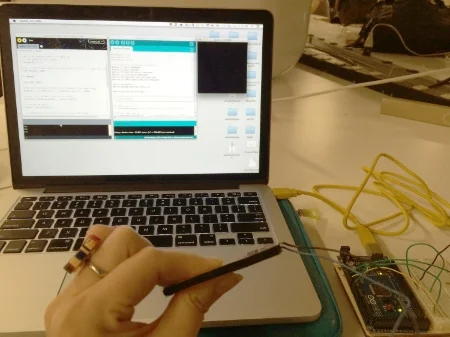

First of all, I used Firmata library which allows me to control an Arduino board from Processing. After setting up the Firmata, I used the minim library in Processing and make different sounds depending on values of different pressure sensors. While messing around with the minim, I also knew that I should only use 8 or 16 bits depth sound files because of seeing the error as below.

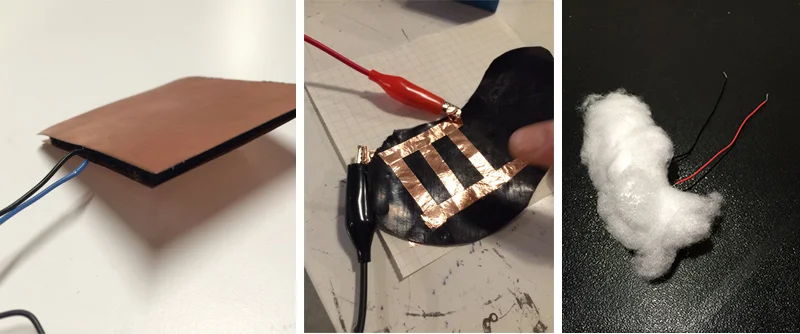

(2) USING DIFFERENT FSRs

Since we want to make different sounds by sensing the weight of blocks, we decided to use FSR and used the store-bought large square sensors at first. and we've got several hand-made FSRs from our kind ITPers. We tried all of them but the sensing values is too different from one and another. the one that made with copper plate was not that sensitive at all, and the other one made with velostat pressure sensor was really hard to make it conductive because the area that copper tape attached was too narrow. On the other hand, the sensor that covered with cotton and sewn up with conductive thread inside (made by Roy) was really sensitive so that I didn't even have to put pressure on it.

After trying to make sounds by using different FSRs, we decided to make our own FSRs, since we should make its shape like circles or rings separately. And we are trying to make really good chord with various sounds.

The first sounds we made is as below.

Phase 2. Making our own FSRs & several prototypes

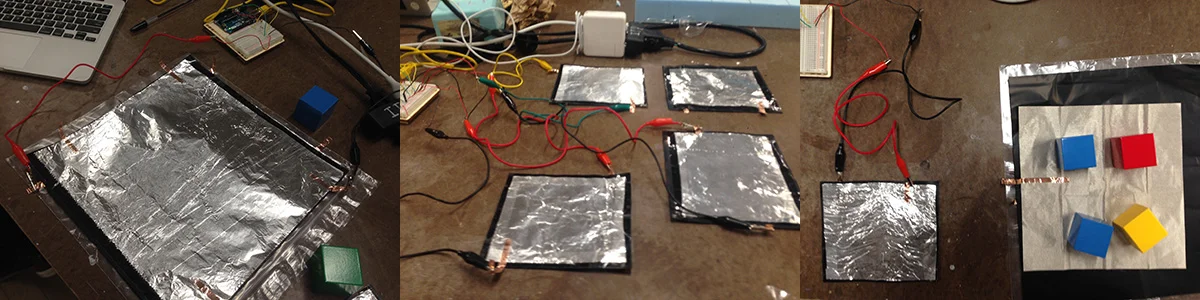

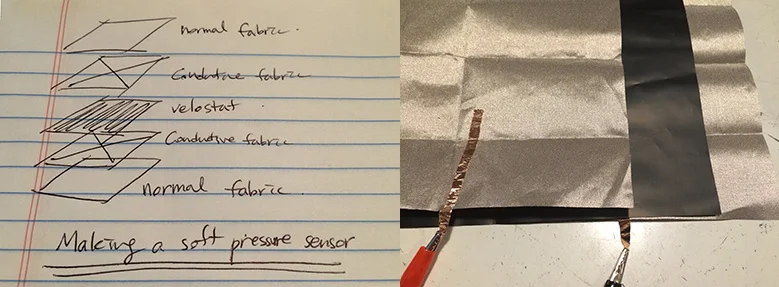

In order to make customized FSRs, we used materials such as conductive fabric, velostat, aluminum foil, etc. We made various types of FSRs to check the sensor values and stability so that we can decide which one is the most appropriate for our project. In each sensor, we used four different types of sounds which are xylophone, flute, violin, glockenspiel.

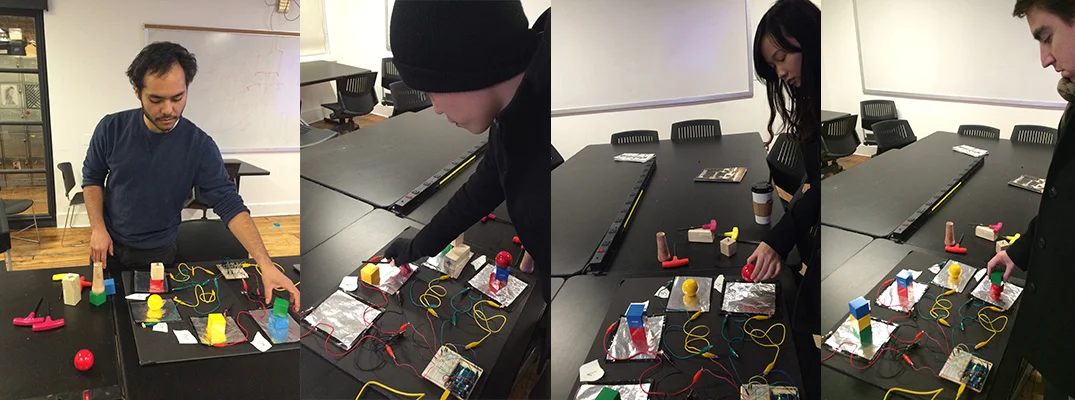

1st User test :

Feedback from the test :

• Handmade FSRs totally worked when people stacked up the blocks and other elements.
• The users liked to listen all of the sounds and play with multiple blocks and sensors but also wanted to hear them separately
• The users wanted to add more blocks or elements to make more different sounds.
• The users expected to hear the different sounds right after they change the status.

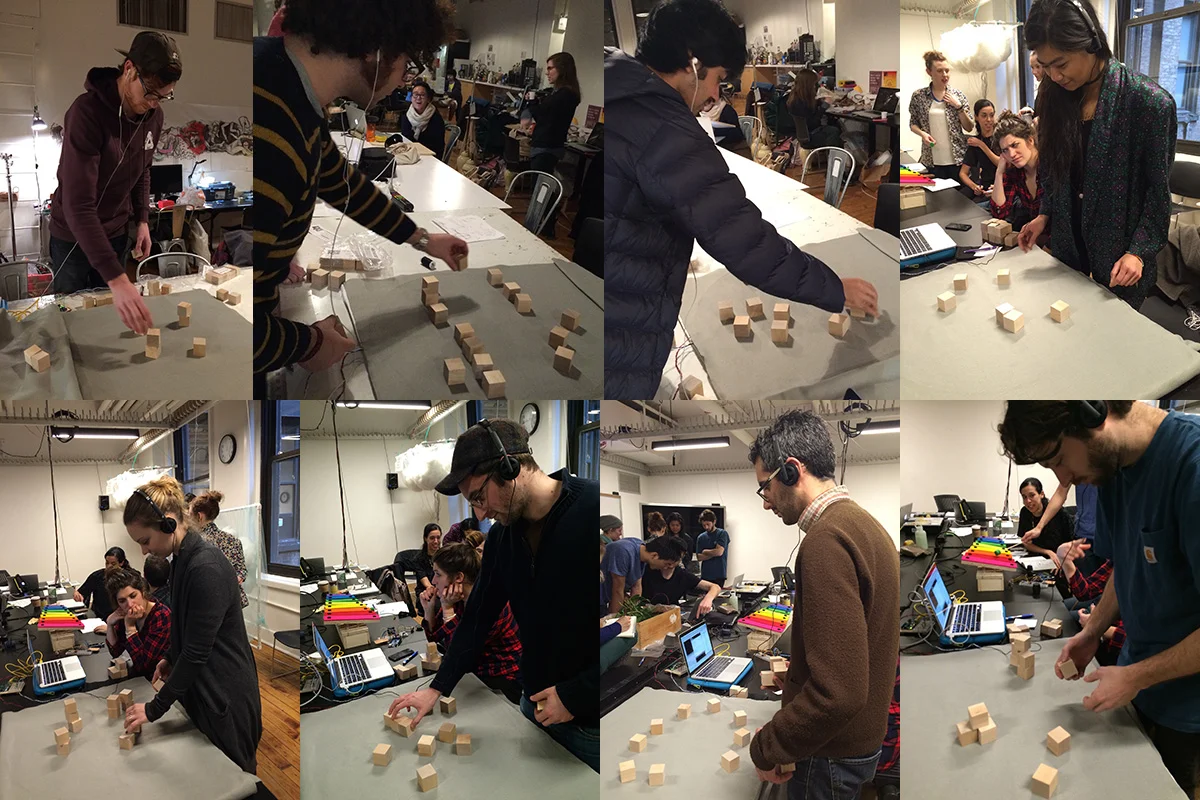

Phase 3. Making Final Product & 2nd Play Test

From the first play test, we realized that people want to play with more blocks and make various sounds. And users also wanted to make harmonious sounds while they are staking up or placing different spots and expect an immediate response.

We prepared 30 wooden blocks, made sensors as round shape, and set different types of delay so that we can check what kind of interaction is the most users prefer.

After the play test, some of them liked the sounds that is made by an order of analog input from pin0 to pin4, others liked the sounds made at a same time.

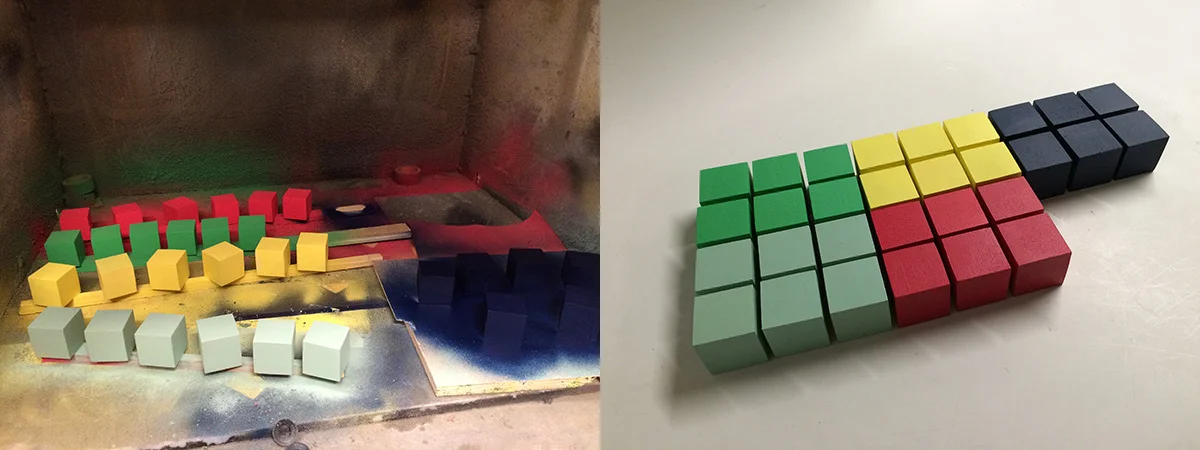

Painting blocks

We thought that making colorful blocks is another way of engaging people to interact with it. We decided to paint blocks in 6 different colors since we have 5 types of sensors. (However, it makes people to think that each color has different effect with each other.)

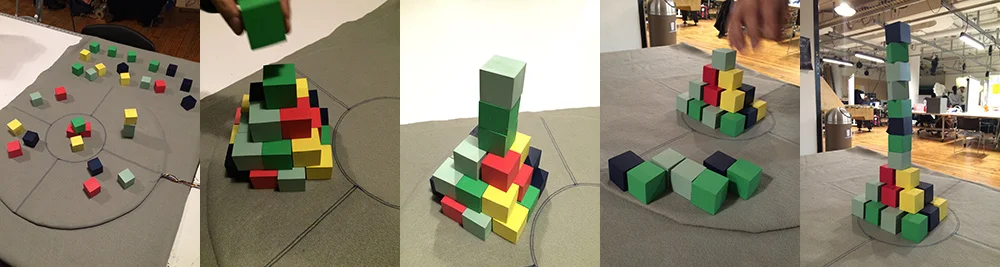

3rd Play test : Colorful blocks let people more actively engaged and stay longer than before.

* What if users stack up all of 30 blocks on one sensor spot?

We thought about the cases that people can make, and we decided to change the speed of sounds more faster and faster if users place the blocks in one spot. And at the time when all blocks stack up, made sounds stop. People liked the idea.

Final Presentation - Summery

There are a bunch of colorful wooden blocks on the top of a felt mat. While you place, stack, and knock down those blocks, you can make countless combinations of sounds in your own ways. Several sensors are embedded inside of the felt mat, and each sensor generates different types of sounds. As you place more blocks, more sound will be added in harmonious ways. The felt mat is specifically designed to turn an everyday object - the felt mat- into an unexpected sound playground for those who participate.

Next Step :

• Make FSRs more stable and test each sensor value so that I can set more accurate threshold value.

• Try a different way of code that can make immediate response. (change the code!)

• Make a new mat with lighter gray color of felt and yellow thread.
• Prepare for the Winter Show!!
